PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號 |

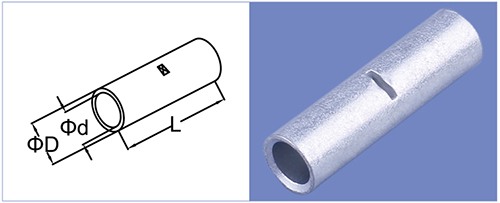

尺寸DIMENSIONS(mm) |
||
|
L |
ΦD |
Φd |
||
|
M1.5 |
M1.5 |
22 |
4 |
2.4 |
|
M2.5 |
M2.5 |
22 |
4.3 |
2.7 |
|
M4 |
M4 |
25 |
4.8 |
3.1 |
|
M6 |
M6 |
25 |
5.5 |
3.8 |
|
M10 |
M10 |
25 |
6.9 |
4.7 |
|
M16 |
M16 |
29 |
7.8 |
5.6 |
|
M25 |
M25 |
29 |
9.5 |
7.1 |
|
M35 |
M35 |
35 |
11 |
8.2 |
|
M40 |
M40 |
35 |
11.2 |
9 |
|
M50 |
M50 |
35 |
12.5 |
9.5 |
|
M70 |
M70 |
45 |
15 |
11.5 |
|
M95 |
M95 |
47 |
17 |
13.5 |
|
M120 |
M120 |
52 |
20 |
15.6 |
|
M150 |
M150 |
59 |
21 |
16.5 |
|
M185 |
M185 |
65 |
23.6 |
18.4 |
|
M240 |
M240 |
75 |
26.4 |
21.2 |
|
M300 |
M300 |
90 |
28.6 |
23.4 |
|
M400 |
M400 |
106 |
32.8 |
26.8 |
|
PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號 |
尺寸DIMENSIONS(mm) |
||
|
L |
ΦD |
Φd |
||
|
S-M1.5 |
S-M1.5 |
15 |
3.3 |
1.8 |
|
S-M2.5 |
S-M2.5 |
15 |
4.3 |
2.7 |
|
S-M4 |
S-M4 |
22 |
5 |
3.3 |
|
S-M6 |
S-M6 |
22 |
5.5 |
3.8 |
|
S-M10 |
S-M10 |
25 |
6.8 |
4.7 |
|
S-M16 |
S-M16 |
27 |
7.8 |
5.6 |
|
S-M25 |
S-M25 |
29 |
9.4 |
7.1 |
|
S-M35 |
S-M35 |
33 |
11.3 |
8.7 |
|
S-M50 |
S-M50 |
35 |
12.6 |
9.8 |
|
S-M70 |
S-M70 |
39 |
14.7 |
11.5 |
|
S-M95 |
S-M95 |
43 |
16.9 |
13.5 |
|
S-M120 |
S-M120 |
47 |
19.9 |
15.6 |
|
S-M150 |
S-M150 |
58 |
20.9 |
16.5 |
|
S-M185 |
S-M185 |
64 |
23.7 |
18.8 |
|
S-M240 |
S-M240 |
75 |
26.2 |
21.2 |
|
S-M300 |
S-M300 |
90 |
28.6 |
23.4 |
|
S-M400 |
S-M400 |
90 |
32.8 |
26.8 |
