PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號(hào) |

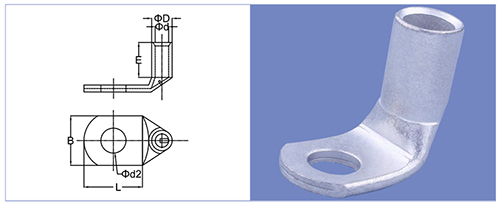

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
T10M6D90 |
T90°10-6 |
6.4 |
11.9 |
12.5 |
6.9 |
4.7 |
10.5 |
|
T10M8D90 |
T90°10-8 |
8.3 |
13.5 |
15.5 |
6.9 |
||
|
T16M6D90 |
T90°16-6 |
6.4 |
11.9 |
12 |
7.8 |
5.6 |
11 |
|
T16M8D90 |
T90°16-8 |
8.3 |
13.5 |
15.5 |
7.8 |
||
|
T25M8D90 |
T90°25-8 |
8.3 |
14 |
16 |
9.5 |
7.1 |
13 |
|
T25M10D90 |
T90°25-10 |
10.5 |
16 |
19 |
9.5 |
||
|
T35M8D90 |
T90°35-8 |
8.3 |
16.5 |
18 |
11 |
8.2 |
16 |
|
T35M10D90 |
T90°35-10 |
10.5 |
16.5 |
22 |
11 |
||
|
T50M10D90 |
T90°50-10 |
10.5 |
17.9 |
22 |
12.5 |
9.5 |
19 |
|
T50M12D90 |
T90°50-12 |
13 |
17.9 |
22 |
12.5 |
||
|
T70M10D90 |
T90°70-10 |
10.5 |
21.5 |
22 |
15 |
11.5 |
21 |
|
T70M12D90 |
T90°70-12 |
13 |
21.5 |
22 |
15 |
||
|
T95M14D90 |
T90°95-14 |
14.5 |
24.7 |
33 |
17 |
13.5 |
24 |
|
T95M16D90 |
T90°95-16 |
16.5 |
24.7 |
33 |
17 |
||
|
T120M14D90 |
T90°120-14 |
14.5 |
28.9 |
33 |
20 |
15.6 |
27 |
|
T120M16D90 |
T90°120-16 |
16.5 |
28.9 |
33 |
20 |
||
|
T150M14D90 |
T90°150-14 |
14.5 |
30.4 |
33 |
21 |
16.5 |
32 |
|
T150M16D90 |
T90°150-16 |
16.5 |
30.4 |
33 |
21 |
||
|
T185M16D90 |
T90°185-16 |
16.5 |
34 |
35 |
23.6 |
18.4 |
34 |
|
T240M16D90 |
T90°240-16 |
16.5 |
38.5 |
35 |
26.4 |
21.2 |
38 |
