PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號 |

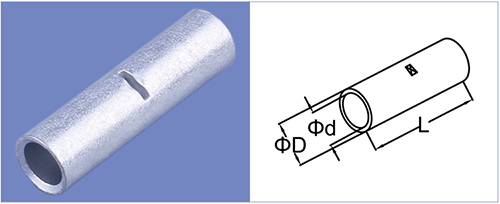

尺寸DIMENSIONS(mm) |
||
|
L |
ΦD |
Φd |
||
|
L1.5 |
L1.5 |
20 |
3.7 |
1.8 |
|
L2.5 |
L2.5 |
20 |
4.0 |
2.4 |
|
L4 |
L4 |
20 |
4.8 |
3.1 |
|
L6 |
L6 |
20 |
5.5 |
3.8 |
|
L10 |
L10 |
20 |
6.2 |
4.5 |
|
L16 |
L16 |
40 |
7.1 |
5.4 |
|
L25 |
L25 |
45 |
8.8 |
6.8 |
|
L35 |
L35 |
45 |
10.6 |
8.2 |
|
L50 |
L50 |
45 |
12.4 |
9.5 |
|
L70 |
L70 |
50 |
14.7 |
11.2 |
|
L95 |
L95 |
50 |
17.4 |
13.5 |
|
L120 |
L120 |
55 |
19.4 |
15.0 |
|
L150 |
L150 |
60 |
21.2 |
16.5 |
|
L185 |
L185 |
65 |
23.5 |
18.5 |
|
L240 |
L240 |
80 |
26.5 |
21.0 |
|
L300 |
L300 |
85 |
30.0 |
23.5 |
|
L400 |
L400 |
90 |
36.5 |
28.5 |
|
L500 |
L500 |
100 |
39.0 |
30.0 |
|
L550 |
L550 |
100 |
41.4 |
31.7 |
|
L630 |
L630 |
110 |
45.0 |
35.0 |
|
L800 |
L800 |
150 |
50.6 |
39.0 |
|
L1000 |
L1000 |
170 |
56.2 |
43.0 |
|
C-L1.5 |
C-L1.5 |
20 |
3.3 |
1.8 |
|
C-L2.5 |
C-L2.5 |
20 |
3.6 |
2.4 |
|
C-L4 |
C-L4 |
20 |
4.4 |
3.1 |
|
C-L6 |
C-L6 |
20 |
5.1 |
3.8 |
|
C-L10 |
C-L10 |
20 |
5.8 |
4.5 |
|
C-L16 |
C-L16 |
40 |
6.6 |
5.4 |
|
C-L25 |
C-L25 |
45 |
8.3 |
6.8 |
|
C-L35 |
C-L35 |
45 |
10.0 |
8.2 |
|
C-L50 |
C-L50 |
45 |
11.6 |
9.5 |
|
C-L70 |
C-L70 |
50 |
13.8 |
11.2 |
|
C-L95 |
C-L95 |
50 |
16.4 |
13.5 |
|
C-L120 |
C-L120 |
55 |
18.2 |
15.0 |
|
C-L150 |
C-L150 |
60 |
19.9 |
16.5 |
|
C-L185 |
C-L185 |
65 |
22.1 |
18.5 |
|
C-L240 |
C-L240 |
80 |
25.0 |
21.0 |
|
C-L300 |
C-L300 |
85 |
28.2 |
23.5 |
|
C-L400 |
C-L400 |
90 |
34.3 |
28.5 |
|
C-L500 |
C-L500 |
100 |
36.5 |
30.0 |
|
C-L630 |
C-L630 |
110 |
42.2 |
35.0 |
|
|
||||
